Microscope cover glass is available in different sizes and thicknesses to match different specimens, microscope objectives, and laboratory applications.
Choosing the correct cover glass is important because both size and thickness can influence specimen preparation, handling, and optical performance.
So, what are the common cover glass sizes and how thick should a microscope coverslip be?
This guide explains the most common cover glass dimensions, thickness grades, and selection considerations for laboratories, distributors, and bulk buyers.
Quick Answer: What Are the Standard Cover Glass Sizes and Thicknesses?
Common microscope cover glass sizes include:
18 × 18 mm
20 × 20 mm
22 × 22 mm
24 × 24 mm
24 × 32 mm
24 × 40 mm
24 × 50 mm
24 × 60 mm
Cover glass thickness is commonly classified into thickness grades such as No. 0, No. 1, No. 1.5, and No. 2.
A widely used option for microscopy is No. 1 or No. 1.5 cover glass, depending on the microscope objective and laboratory application.
Exact thickness ranges may vary slightly by manufacturer, so buyers should always check the product specification.
Common Cover Glass Sizes
Unlike microscope slides, which are usually rectangular and relatively standardized, cover glass is available in many sizes.
Square Cover Glass Sizes
Common square sizes include:
Size | Typical Use |
|---|---|
18 × 18 mm | Small specimens |
20 × 20 mm | General microscopy |
22 × 22 mm | Routine laboratory use |
24 × 24 mm | Larger specimen coverage |
Square cover glass is widely used because it is easy to handle and suitable for many routine microscopy applications.
Rectangular Cover Glass Sizes
Rectangular cover glass provides a larger coverage area.
Common sizes include:
24 × 32 mm
24 × 40 mm
24 × 50 mm
24 × 60 mm
These sizes may be useful for larger tissue sections or specimens requiring a wider viewing area.
For pathology and histology applications, rectangular cover glass is commonly selected according to specimen size and laboratory workflow.
Circular Cover Glass Sizes
Circular cover glass is also available for specialized microscopy and laboratory applications.
It may be used with:
Cell culture systems
Imaging chambers
Specialized microscopes
Research devices
Custom laboratory equipment
Circular cover glass should be selected according to the diameter required by the equipment or application.
What Is Cover Glass Thickness?
Cover glass thickness refers to the distance between its two flat surfaces.
Because cover glass sits between the specimen and microscope objective, thickness can influence the optical path.
This becomes particularly important when using:
High-magnification objectives
High numerical aperture objectives
Fluorescence microscopy
Confocal microscopy
Digital imaging
Advanced research microscopes
For these applications, laboratories should follow the microscope objective manufacturer's recommended cover glass thickness.
Common Cover Glass Thickness Grades
Cover glass is often classified using numbers.
Typical approximate ranges may include:
Thickness Grade | Approximate Thickness |
|---|---|
No. 0 | About 0.09–0.13 mm |
No. 1 | About 0.13–0.16 mm |
No. 1.5 | About 0.16–0.19 mm |
No. 2 | About 0.19–0.23 mm |
These ranges are general references and may vary slightly according to manufacturer specifications.
For purchasing, buyers should always confirm the exact thickness range rather than ordering by number alone.
What Is No. 1 Cover Glass?
No. 1 cover glass is a commonly used thickness grade for general laboratory microscopy.
Its approximate thickness is often around:
0.13–0.16 mm
It can be suitable for many routine microscopy applications.
However, microscope requirements should always be checked before selection.
What Is No. 1.5 Cover Glass?
No. 1.5 cover glass is widely used in research microscopy because many microscope objectives are designed around a nominal cover glass thickness close to 0.17 mm.
A typical No. 1.5 cover glass may fall approximately within:
0.16–0.19 mm
For high-resolution imaging, fluorescence microscopy, confocal microscopy, or high numerical aperture objectives, cover glass thickness can become particularly important.
The microscope manufacturer's objective specification should be used as the primary reference.
Why Does Cover Glass Thickness Matter?
Light passes through the cover glass before entering the microscope objective.
If the cover glass is significantly thicker or thinner than the optical system expects, image quality may be affected in certain applications.
Possible effects can include:
Reduced sharpness
Lower resolution
Optical aberration
Reduced image contrast
The effect is generally more important at high magnification and high numerical aperture.
For routine low-magnification applications, small differences may be less critical.
How to Choose the Correct Cover Glass Size
The cover glass should adequately cover the specimen without unnecessarily covering the entire microscope slide.
Consider:
Specimen Area
A small specimen may require only an 18 × 18 mm or 22 × 22 mm coverslip.
A larger tissue section may require 24 × 40 mm or 24 × 50 mm.
Microscope Slide Size
Common microscope slide dimensions include:
25 × 75 mm
25.4 × 76.2 mm
26 × 76 mm
The selected cover glass should fit comfortably within the usable slide area.
Mounting Medium
The size should allow the mounting medium to spread beneath the coverslip without excessive overflow.
How to Choose the Correct Thickness
Ask these questions before ordering:
1. What microscope objective will be used?
Check whether the objective specifies a particular cover glass thickness.
2. What magnification is required?
High-magnification applications may be more sensitive to thickness variation.
3. Is the application routine or advanced imaging?
Routine microscopy and high-resolution research imaging may have different requirements.
4. Does the laboratory require No. 1 or No. 1.5?
Confirm the exact thickness range rather than relying only on the number.
Size vs Thickness: What Is More Important?
Both matter, but for different reasons.
Cover Glass Size = Specimen Coverage
Cover Glass Thickness = Optical Compatibility
The correct size ensures that the specimen is properly covered.
The correct thickness helps maintain compatibility with the microscope's optical system.
For professional microscopy, buyers should specify both.
Does Glass Material Affect Cover Glass Selection?
Yes.
Cover glass may be made from different glass materials, including:
Different materials may offer different levels of optical clarity, chemical resistance, thermal characteristics, and cost.
Cover glass should therefore be selected based on:
Size + Thickness + Glass Material + Optical Requirement + Application
What Should Bulk Buyers Check?
For distributors and importers, cover glass specifications should be clearly defined before placing an order.
Important parameters include:
Length
Width
Shape
Thickness grade
Exact thickness range
Thickness tolerance
Glass material
Surface cleanliness
Optical clarity
Edge quality
Quantity per box
Packaging
Breakage rate
For high-volume orders, samples should be tested before mass production.
Why Is Thickness Consistency Important?
For bulk buyers, average thickness is not the only consideration.
Consistency across the batch is also important.
Large variation may create differences in optical performance or equipment compatibility.
Manufacturers should therefore control:
Raw Glass → Thickness Inspection → Cutting → Cleaning → Quality Control → Packaging
For research applications, tighter thickness requirements may be needed.

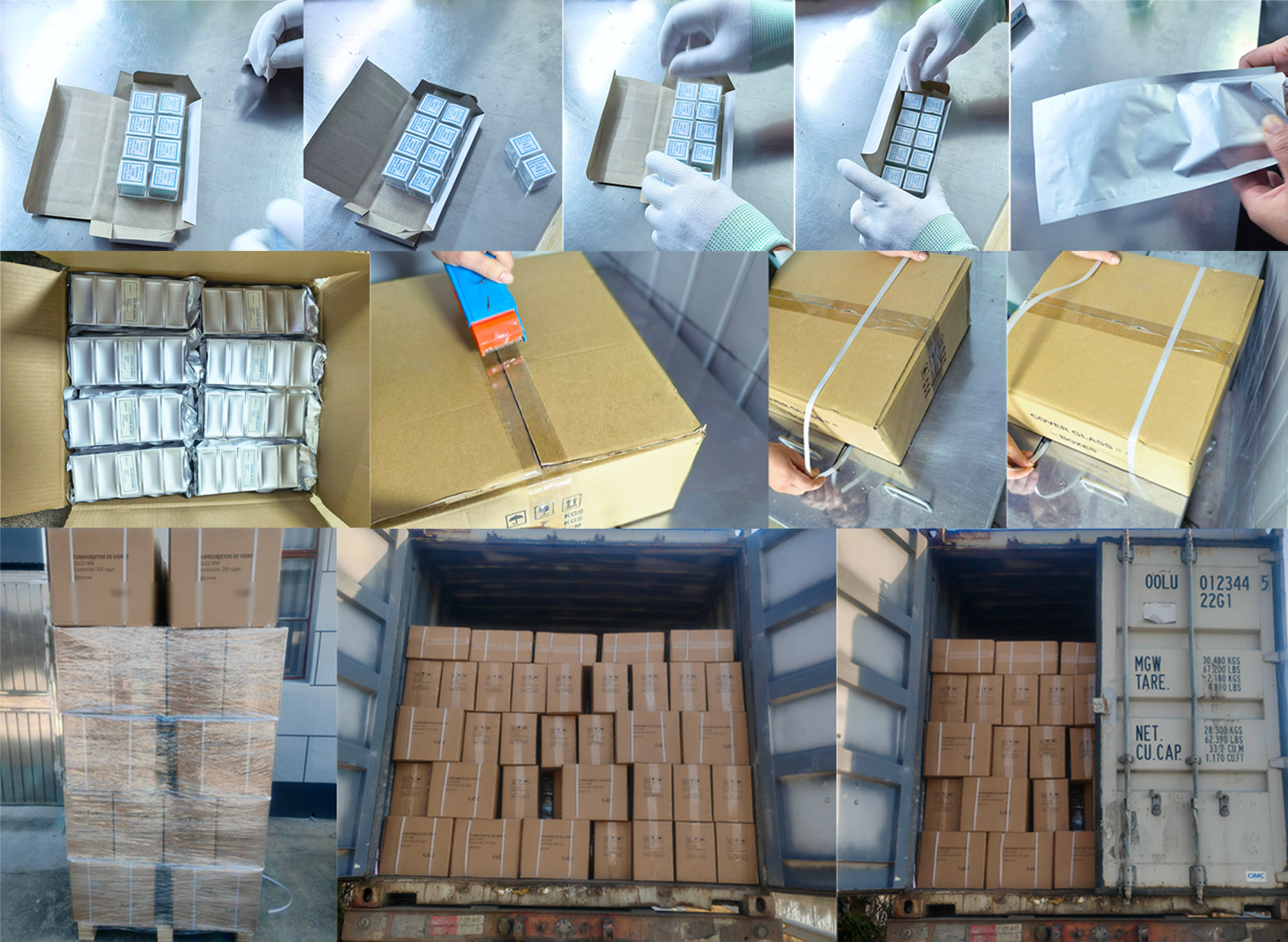

Cover Glass Packaging and Breakage
Cover glass is much thinner and more fragile than microscope slides.
Poor packaging can lead to:
Cracks
Edge chips
Broken corners
Complete breakage
Surface scratches
For international shipments, buyers should evaluate both product quality and packaging quality.
A very inexpensive cover glass can become costly if breakage during transportation is high.
Cover Glass Sizes and Thickness from Chuangxin Medlab
Chuangxin Medlab manufactures and supplies microscope cover glass for laboratories, research institutions, pathology and histology applications, distributors, importers, and OEM customers.
Our cover glass range includes:
Common rectangular sizes include 24 × 32 mm, 24 × 40 mm, 24 × 50 mm, and 24 × 60 mm, with additional sizes available according to product specifications.
For bulk and OEM customers, size, thickness, glass material, packaging, and labeling requirements can be confirmed before mass production.
Frequently Asked Questions
What is the standard cover glass size?
There is no single size for every application. Common sizes include 18 × 18 mm, 22 × 22 mm, 24 × 24 mm, and rectangular sizes such as 24 × 40 mm and 24 × 50 mm.
What is the standard thickness of cover glass?
Common coverslip thickness grades include No. 0, No. 1, No. 1.5, and No. 2. The required thickness depends on the microscope and application.
How thick is No. 1 cover glass?
No. 1 cover glass is commonly approximately 0.13–0.16 mm thick, although exact specifications may vary by manufacturer.
How thick is No. 1.5 cover glass?
No. 1.5 cover glass is typically approximately 0.16–0.19 mm thick, with a nominal value close to 0.17 mm commonly associated with microscopy objectives.
Is No. 1.5 cover glass better than No. 1?
Not necessarily. The correct choice depends on the microscope objective and application. No. 1.5 is commonly selected for optical systems designed around approximately 0.17 mm cover glass.
What size cover glass should I use for histology?
The appropriate size depends on the tissue section and microscope slide. Rectangular cover glass such as 24 × 40 mm or 24 × 50 mm may be suitable for larger tissue sections.
Does cover glass thickness affect image quality?
Yes, especially with high-magnification and high numerical aperture objectives. Incorrect thickness can contribute to optical aberration and reduced image quality.
Conclusion
Choosing the right cover glass size and thickness is essential for reliable specimen preparation and microscopy.
Common cover glass sizes range from small square formats such as 18 × 18 mm and 22 × 22 mm to rectangular formats such as 24 × 40 mm, 24 × 50 mm, and 24 × 60 mm.
Cover glass thickness is commonly classified as No. 0, No. 1, No. 1.5, and No. 2, with No. 1 and No. 1.5 widely used in microscopy applications.
For laboratories, the correct choice should be based on:
Specimen Size + Microscope Objective + Thickness Requirement + Glass Material + Application
For distributors and bulk buyers, thickness consistency, optical clarity, packaging, and breakage control are equally important.
Before placing a large order, always confirm the exact size and thickness specification with both the laboratory and the cover glass manufacturer.
